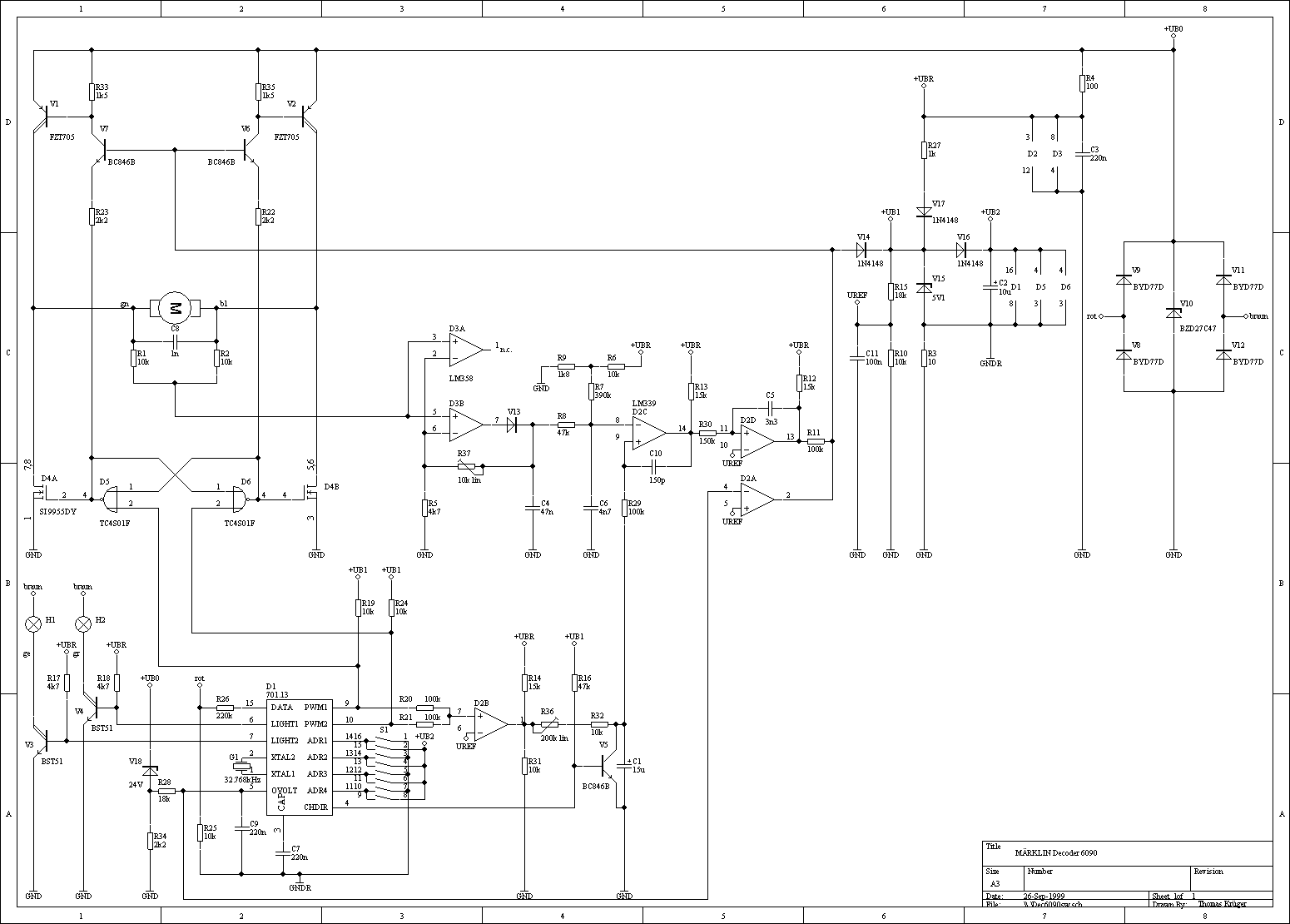

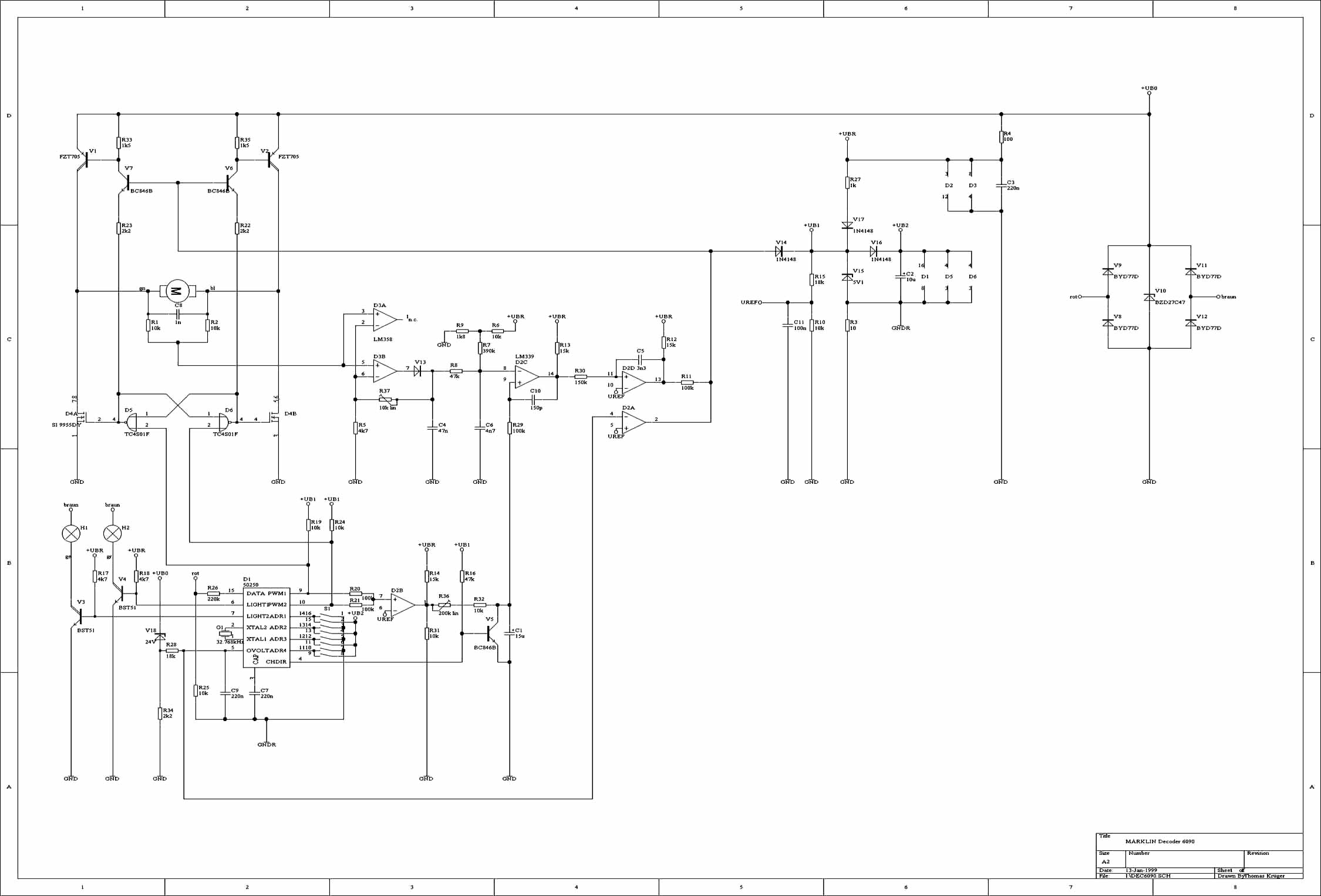

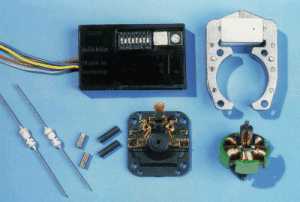

Schematic of the 6090
Created by Thomas Krüger |
As JPG (169KB)
 |
As GIF (38KB)
|
Components - top (55KB)
Created by Michael Prieskorn
Homepage (great) |
 |
|

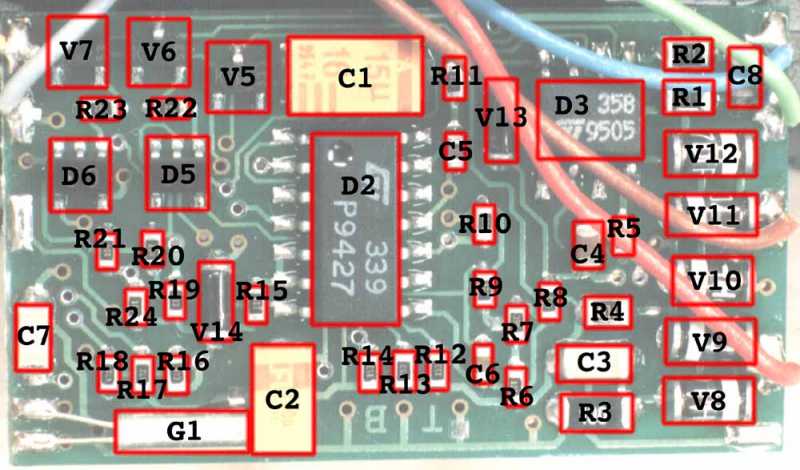

Components - bottum (54KB)
Created by Michael Prieskorn
Homepage (great) |
 |
|
| |
|
|
|
| !! Click here
for a page with all the pictures together !! |
| |
|
|
|
|
| |
|
|
|
| Components list |
| Designator |
Component |
|
Designator |
Component |
| C1 |
15u |
R19 |
10k |
| C2 |
10u |
R20 |
100k |
| C3 |
220n |
R21 |
100k |
| C4 |
47n |
R22 |
2k2 |
| C5 |
3n3 |
R23 |
2k2 |
| C6 |
4n7 |
R24 |
10k |
| C7 |
220n |
R25 |
10k |
| C8 |
1n |
R26 |
220k |
| C9 |
220n |
R27 |
1k |
| C10 |
150p |
R28 |
18k |
| C11 |
100n |
R29 |
100k |
| D1 |
50250 |
R30 |
150k |
| D2A |
LM339 |
R31 |
10k |
| D2B |
LM339 |
R32 |
10k |
| D2D |
LM339 |
R33 |
1k5 |
| D2C |
LM339 |
R34 |
2k2 |
| D3A |
LM358 |
R35 |
1k5 |
| D3B |
LM358 |
R36 |
200k lin |
| D4B |
SI 9955DY |
R37 |
10k lin |
| D4A |
SI 9955DY |
S1H |
SW DIP8 |
| D5 |
TC4S01F |
S1G |
SW DIP8 |
| D6 |
TC4S01F |
S1F |
SW DIP8 |
| G1 |
32.768kHz |
S1E |
SW DIP8 |
| H1 |
LAMP |
S1D |
SW DIP8 |
| H2 |
LAMP |
S1C |
SW DIP8 |
| M1 |
MOTOR DC |
S1B |
SW DIP8 |
| R1 |
10k |
S1A |
SW DIP8 |
| R2 |
10k |
V1 |
FZT705 |
| R3 |
10 |
V2 |
FZT705 |
| R4 |
100 |
V3 |
BST51 |
| R5 |
4k7 |
V4 |
BST51 |
| R6 |
10k |
V5 |
BC846B |
| R7 |
390k |
V6 |
BC846B |
| R8 |
47k |
V7 |
BC846B |
| R9 |
1k8 |
V8 |
BYD77D |
| R10 |
10k |
V9 |
BYD77D |
| R11 |
100k |
V10 |
BZD27C47 |
| R12 |
15k |
V11 |
BYD77D |
| R13 |
15k |
V12 |
BYD77D |
| R14 |
15k |
V13 |
1N4148 |
| R15 |
18k |
V14 |
1N4148 |
| R16 |
47k |
V15 |
5V1 |
| R17 |
4k7 |
V16 |
1N4148 |
| R18 |
4k7 |
V17 |
1N4148 |
|
|
V18 |
24V |
|
| |
|
|
|
|
| |
|
|
|

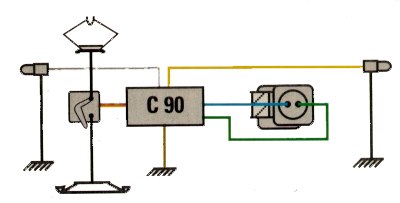

| Mounting Instructions |
| |
|
|
|
 |
